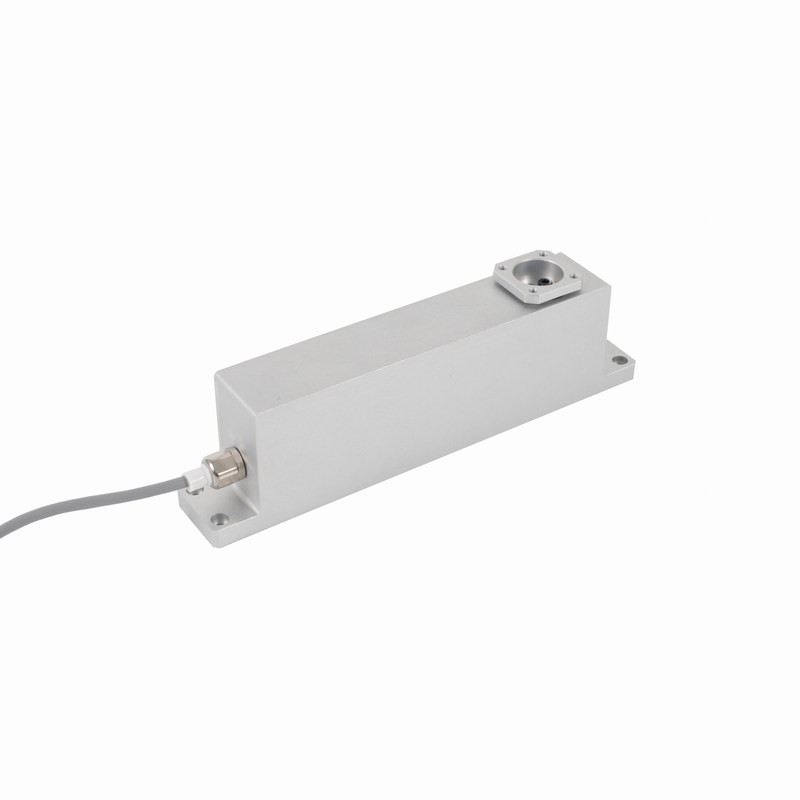

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection

Name: WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: WLSM-132
Price: 25.00 USD
Availability: InStock

Ürün Ayrıntıları

Menşe yeri: Çin

Marka adı: Brans

Model numarası: WLSM-132

Belge: WLSM-132 High Accuracy Load...NS.pdf

Ödeme ve Nakliye Şartları

Min sipariş miktarı: 1 adet

Teslim süresi: Bir hafta

Ödeme koşulları: T/T

Yetenek temini: 800 adet/ay

En İyi Fiyatı Alın

Ürün Ayrıntıları

Ürün Tanımı

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                                                                compact single point load cell, single point load cell with overload protection, easy installation single point load cell


Kapasite:	30g/50g/100g/300g /500g/1kg/2kg	Birleşik hata:	≤%0,005FS
Doğrusal olmama:	≤%0,005FS	Tekrarlanabilirlik:	≤%0,005FS
Nominal çıkış:	1,0mV/V	Sıfır bakiyesi:	±0,05mV/V
Yalıtım Direnci:	≧ 5000mΩ/100vdc	Malzeme:	Alüminyum Alaşım
Güvenli aşırı yük:	%150 FS	Koruma Sınıfı:	IP66 (özelleştirilebilir)
Operasyon sıcaklığı.:	-30~80°C	Kablo boyutu:	Ф3.2x4000mm (Özelleştirilebilir)

Kapasite:	30g/50g/100g/300g /500g/1kg/2kg
Birleşik hata:	≤%0,005FS
Doğrusal olmama:	≤%0,005FS
Tekrarlanabilirlik:	≤%0,005FS
Nominal çıkış:	1,0mV/V
Sıfır bakiyesi:	±0,05mV/V
Yalıtım Direnci:	≧ 5000mΩ/100vdc
Malzeme:	Alüminyum Alaşım
Güvenli aşırı yük:	%150 FS
Koruma Sınıfı:	IP66 (özelleştirilebilir)
Operasyon sıcaklığı.:	-30~80°C
Kablo boyutu:	Ф3.2x4000mm (Özelleştirilebilir)

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection

Features & Applications

1. The WLSM-132 features a compact, easy-to-install Single Point Load Cell with integrated overload protection for reliable operation.
2. Engineered for exceptional accuracy, this single point load cell delivers high precision with mg-level resolution.
3. Offering strong stability, it is the best choice for micro-volume, high-precision weighing, making it an ideal single-point load cell for critical applications.
4. This high-stability load cell is mainly used for batching, filling, and production quality control in micro-dispensing, medicine, cosmetics, food packaging, and other small packages.

Specifications

Capacity	30g/50g/100g/300g /500g/1kg/2kg
Combined Error	≤0.005%F.S.
Non-linearity	≤0.005%F.S.
Repeatability	≤0.005%F.S.
Rated Output	1.0mV/V
Zero Balance	0.05mV/V
Insulation Resistance	≧5000MΩ/100VDC
Recommended Excitation	2~12VDC
Material	Aluminum Alloy
Safe Overload	150%F.S.
Protection Class	IP66(Customizable)
Operation Temp.	-30~80°C
Cable Size	Ф3.2x4000mm(Customizable)
Nominal Displacement	<0.05mm

Dimensions(mm)

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection 0

Load direction

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection 1

Wiring code

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection 2

Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
